RX1K PROXIMITY READER

pp1-rx1k

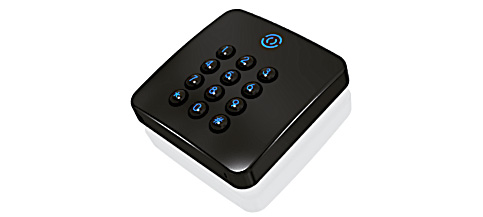

The RX1K advanced access control reader is similar to the RX1 but has the added feature of an integrated keypad providing prox-and-pin access. The unit is designed for surface mounting directly to most plain wall finishes, and fits also onto a UK or EU electrical backbox. This powerfully secure and innovative reader has a beautifully clean aesthetic and features an RGB LED that can be applied to many applications, e.g. colour coded access levels, migration status or just mood lighting

specification

Mechanical

Dimensions: 87mm x 87mm x 21mm (3.4 x 3.4 x 0.8 inches)
Housing: Moulded polycarbonate/ABS
Mounting: Wall surface

Connection

1 - +Vdc Supply Voltage (+5Vdc to +16Vdc)
2 - DATA1 / CLK Wiegand or Clock/Data Output
3 - DATA0 / DAT Wiegand or Clock/Data output
4 - GREEN green LED control input
5 - RED red LED control input
6 - BUZZER Buzzer control input
7 - TMPR / CP Tamper or Card Present output
8 - OV Suply voltage ground
9 - TTL TX TTL transmit line
10 - TTL RX TTL receive line

Environmental

Operating Temperature: - 20°C to + 60°C
Humidity: 0 - 100% RHNC
Ingress Protection: IP65

Electrical

Voltage: +5Vdc to +16Vdc
Current: 250mA Typical
Data Voltage: Rest>4Vdc / Active<1Vdc
Data Output: Wiegand, Clock & Data
Indication: 1 RGB LED
Sounder: Integral speaker
