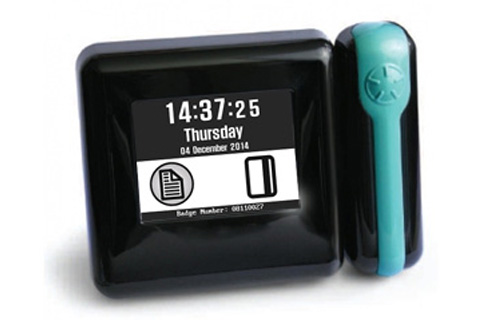

TS2020 - Proximity Terminal

The TS2020 Terminal reads many popular badge formats using either the 125KHz ID cards or 13.56Mhz smartcards technologies.

It also offers a wide range of proximity technologies to match any existing card based systems, such as access control or cashless vending, making it the ultimate adaptable solution. The Terminal range provide a solid foundation for accurate, reliable data capture that is fundamental to any chosen system. Our National network of engineers will ensure that these Terminals provide your organisation with a reliable, quality service for many years to come.

All TS2020 terminals come with a one-year return to factory warranty.
TS2020 - Proximity Terminal
User Interface
5.7" colour TFT display
Anti-glare Touch Panel
Wide-range loudspeaker
Proximity reader

10/100Base Ethernet
Fastlane Compatible (Additional Option)

Power Options
Power over Ethernet (PoE)
Back-up battery

High performance, low-power ARM9 processing engine
Micro-SD memory card slot
High-speed FLASH and DRAM program storage
4Mb non-volatile data storage
Non-volatile real-time clock/calendar
Rechargeable NiMH back-up battery


Impact-resistant ABS housing
Black gloss finish standard
Colour-coded reader detail
Easy 3-point wall-mounting
Installation support straps
Detachable cable connectors throughout
Internal cable-management cover
Maximum dimensions: 251mm W, 188mm H, 104mm D

NOTE: Fastlane compatibility is only available using our IP protocol terminal type.
