DESKTOP CARD READER

PP1-RXU80

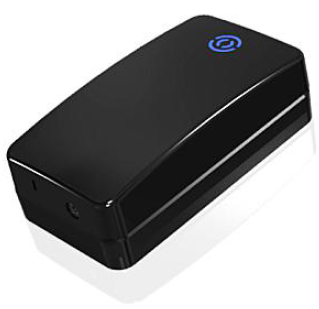

The ELITE series RXU is a free standing desktop unit that can be used as an access card enrollment reader. If required, the reader may be screw fixed to the desktop or a suitable wall surface.

The enrollment reader connects to a PC via a USB port and is configured using the Third Millennium ‘TM Data Entry’ application. This is a system application that runs in the background of a WINDOWS© based IOS.

This can then populate any text field that is highlighted. For example, automatically adding a badge number to our Microtrak Evolution software simply by clicking on the Card ID field and then reading the card required.


DESKTOP CARD READER
Specification
Electrical
Voltage: +5Vdc to +16Vdc
Current: 250mA typical
Data Voltage: Rest >4Vdc / Active <1Vdc
Data Output: Wiegand, Clock & Data, Custom Outputs
Indication: 1 RGB LED
Sounder: Integral speaker

Physical
Dimensions: 96mm x 52mm x 32mm (3.8 x 2.1 x 1.3 inches)
Housing: Moulded polycarbonate/ABS
Mounting: Free standing (or screw-fixed)

Inputs/Outputs
PC Interface: USB - Type ‘A’
